[Construction Case] Gangneung BNC - CCP Interworking
The key to HACCP authentication and management is to establish and manage CCP. Smart HACCP means that the CCP set during HACCP authentication is introduced with measurable Iot equipment so that data can be collected and managed. In Gangneung BNC, the temperature of the metal detector and oven is set to CCP, and each was linked to the system.
This is the appearance of a metal detector, one of the CCPs of Gangneung BNC.

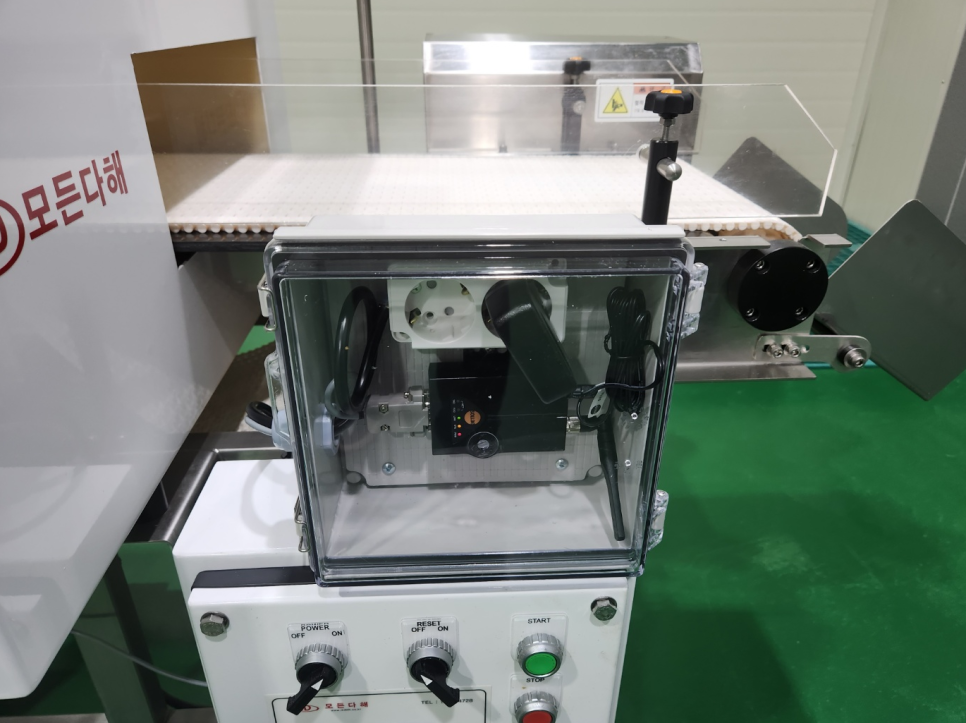

Install a module for detection history communication in the metal detector to send detection history to the system in real time.

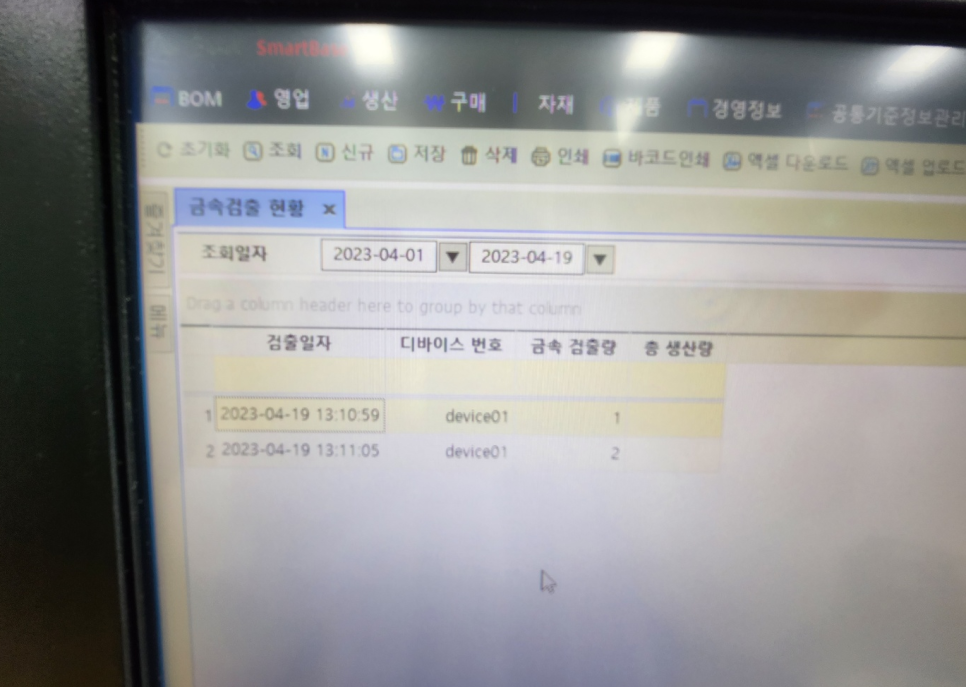

Verify that the metal detection history is linked in real time in the system.

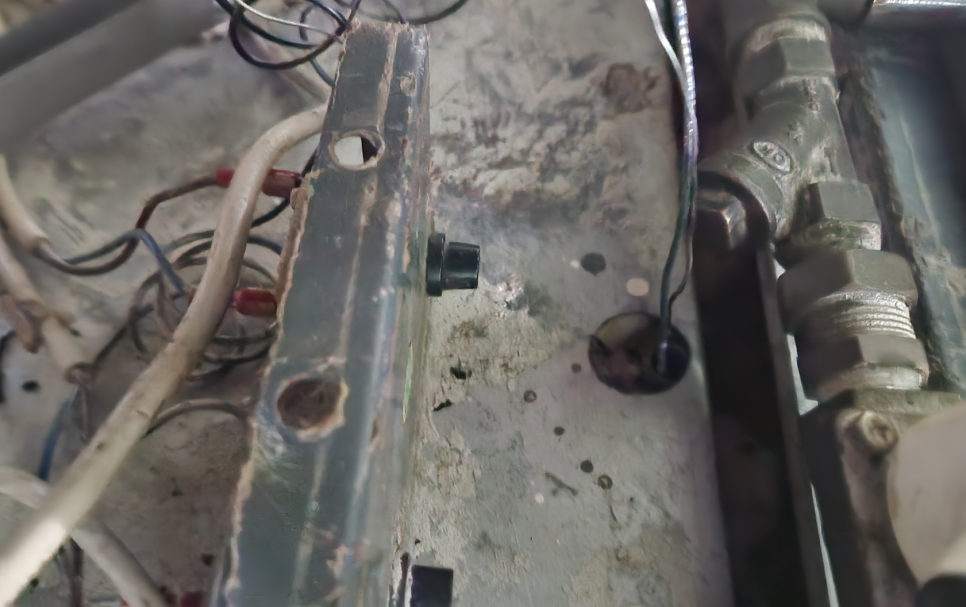

A probe-type temperature sensor is inserted into a small hole to measure the temperature in the baking oven.

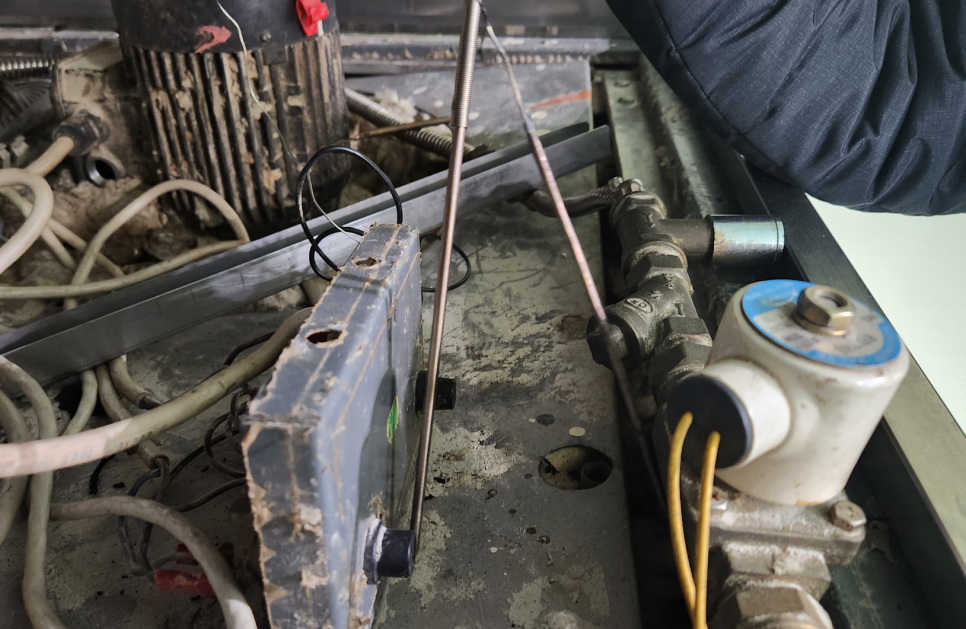

When I took out the probe, two probe-type temperature sensors were installed to control the oven.

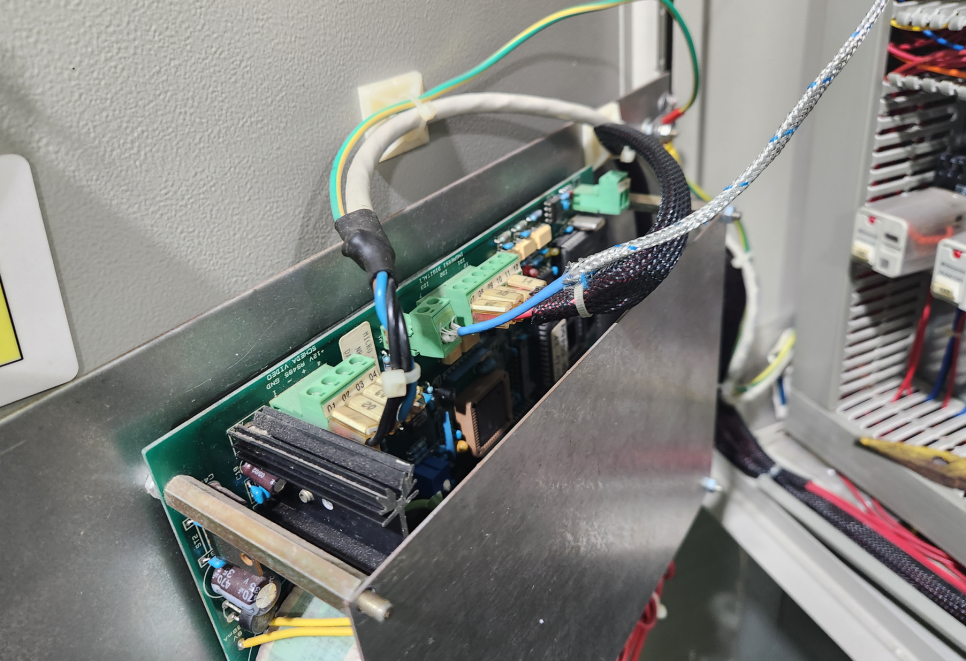

When I opened the terminal box and checked it, the temperature sensor is a three-wire PT100 type temperature sensor.
Prepare a sensor with the same specification as the existing temperature sensor type and work with the Iot equipment.

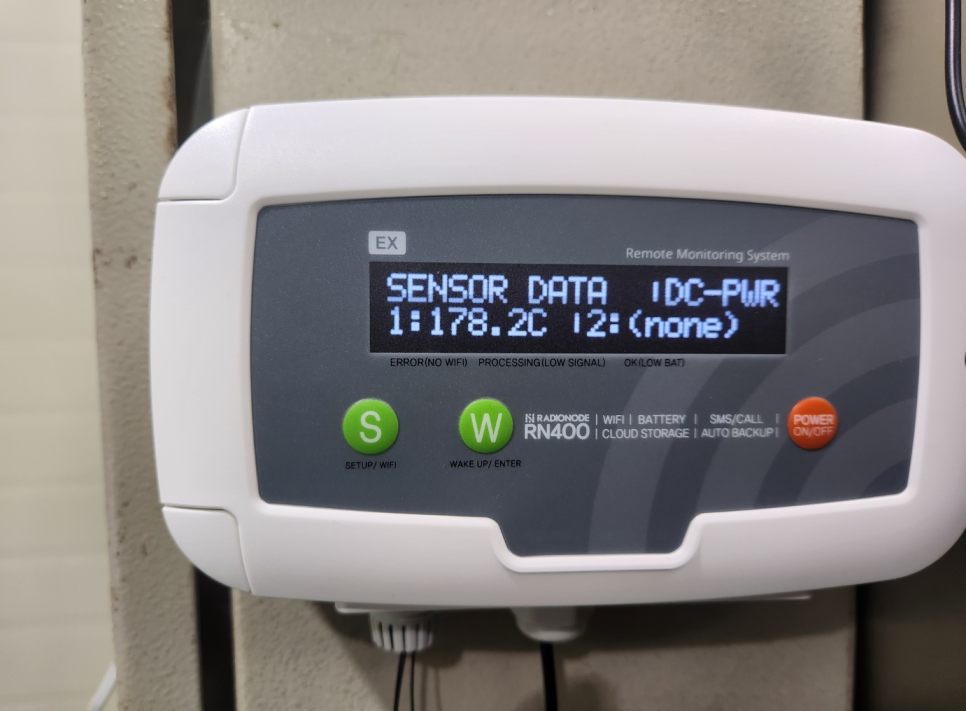

Install the Iot equipment to link the oven temperature value to the system and connect a separate probe type temperature sensor to see if the normal temperature value appears.

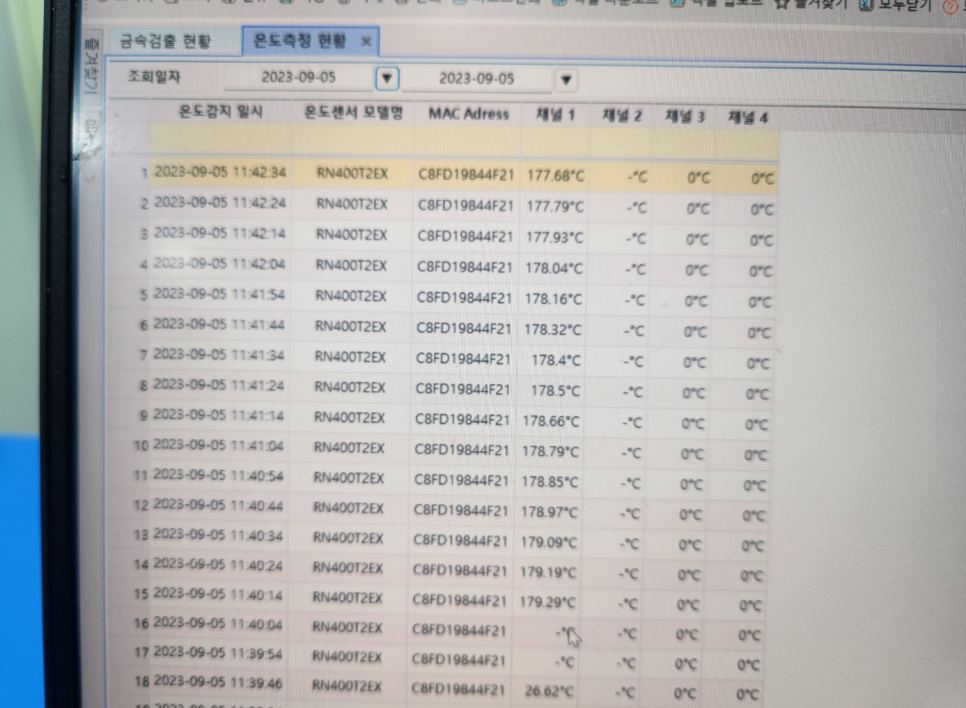

The system also checks whether the temperature value is recorded normally and corrects the temperature value installed separately from the oven value.
