[Construction case] MASTA EV - AI Demonstration Support Project

AI 실증지원사업 3축 진동센서 설치

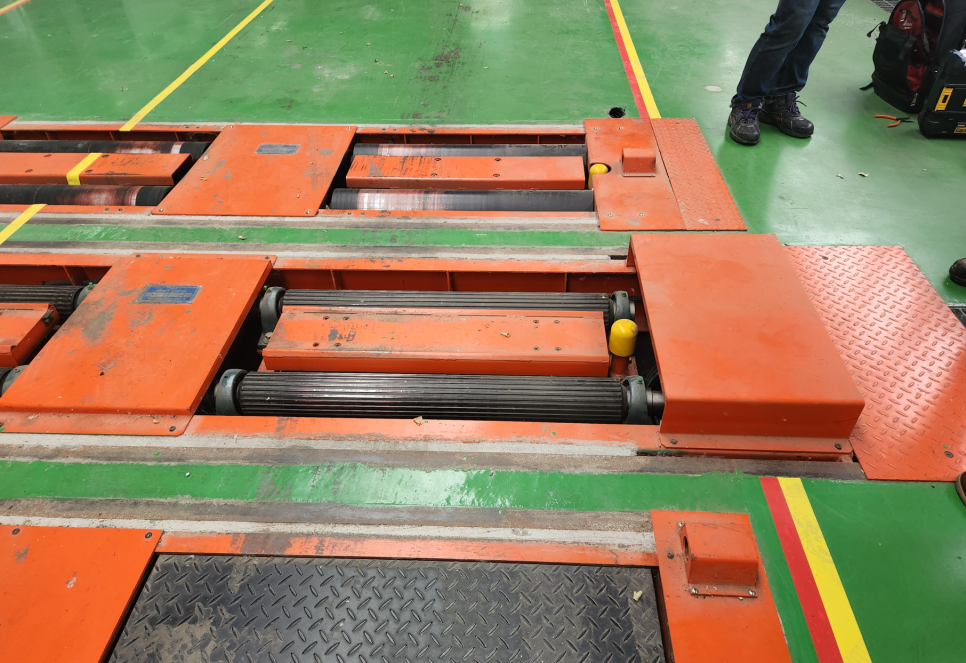

It is an equipment that tests the ABS brake braking force of a completed car. The AI demonstration support project has established a system that collects vibration data of this inspection equipment and provides information for AI to analyze and preserve it.

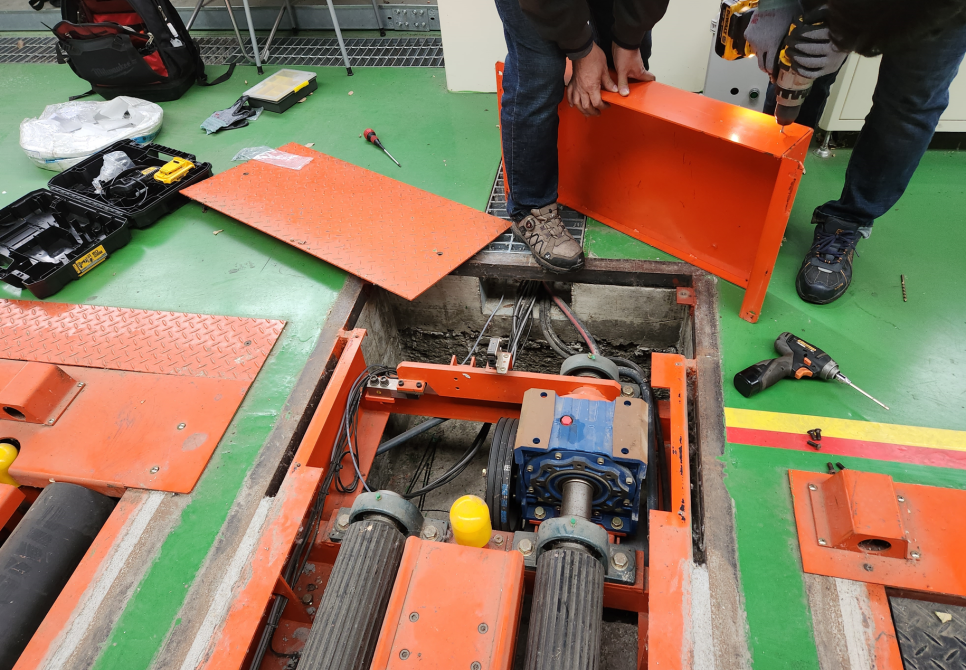

It is a view of disassembling the inspection equipment and finding a drive shaft that can best collect vibration values.
In the picture, the blue motor is the key drive shaft.

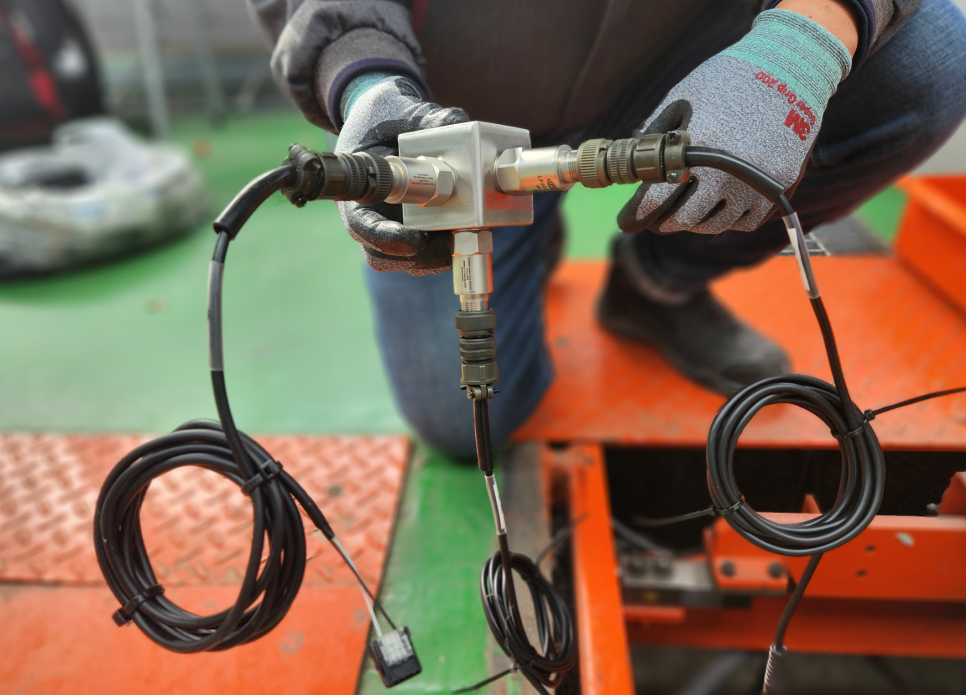

This is an assembly picture of a three-axis vibration sensor. It collects vibration values by x, y, and z axes of vibration and transmits them to the system.
It is installed on the drive shaft of the inspection equipment.
  • Send data collected from the sensor to the system
  • Verify that the sensor delivers the value normally
